AREA 65 4G TELEMETRY
is a plug-and-play LTE Cat 4 module optimized for M2M and IoT applications. Designed for efficiency and reliability, it provides cost-effective, high-performance LTE connectivity with data rates up to 150 Mbps downlink and 50 Mbps uplink.
Suitable for both low-latency telemetry and higher bandwidth applications such as video, diagnostics, and edge monitoring, Area 65 4G Telemetry module ensures dependable data transmission across diverse environments.
The module supports multiple interface options — UART, CAN, I2C, and SPI — enabling easy integration with existing systems for seamless wireless data transfer. It is globally compatible and features multi-constellation GNSS for accurate positioning, making it ideal for asset tracking and vehicle fleet management.

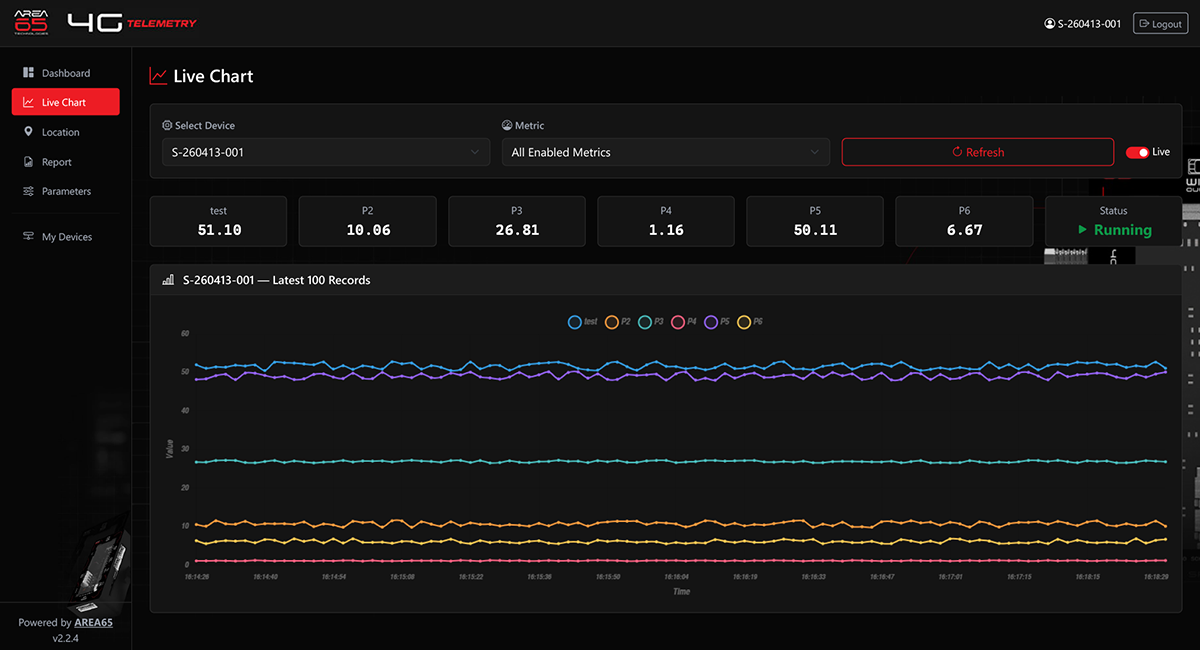

For real-time visibility, AREA 65 Live Monitoring allows users to access and monitor their data anytime through a secure web-based cloud platform. The intuitive customizable GUI lets users upload background images, define data labels, parse input streams, and visualize parameters through graph plotting, data logging, and file sharing.
Additionally, the module includes an embedded microSD card slot for local data storage, ensuring data integrity even during network interruptions.
APPLICATION SCENARIOS
TRANSMIT
Connect your device and transmit data wirelessly via 4G network.

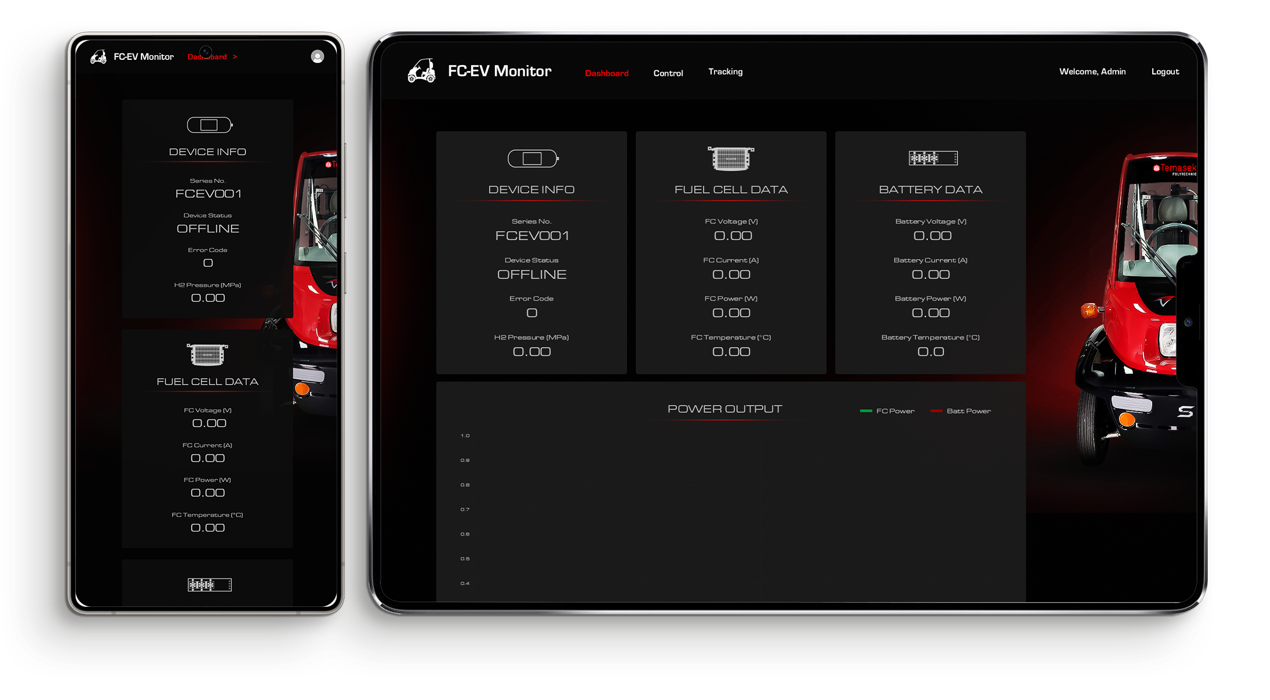

RECEIVE

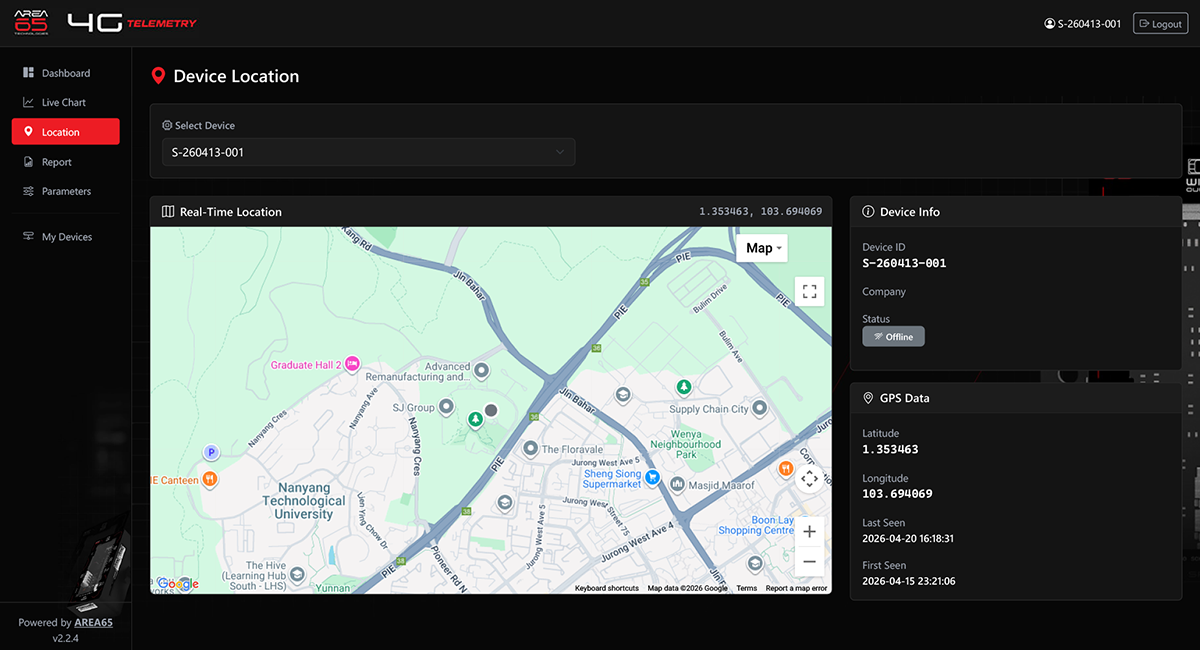

Monitor your data live anywhere by logging into Area 65 cloud server via web browser.
PRODUCT SPECIFICATIONS
| GENERAL | |
|---|---|
| Product Name | Area 65 4G Telemetry |
| 4G Module | Quectel EG25-G |
| Power Requirement | 5V @ 1A |
| Max Dimension | 78 x 57 x 24mm |
| Product Weight | 45g |
| CONNECTIVITY | |
|---|---|
| Wi-Fi Capability | Yes |
| Expandable 4G Connectivity | Optional CAT-1 or CAT-4 modules to suit varying project bandwidth requirements (10Mbps – 150Mbps) |
| Supported Regions | Worldwide (contact us for full coverage details) |
| Default LTE-FDD Bands | B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 |
| LTE-FDD Data Rate (Mbps) | Max 150 (DL)/ 50 (UL) |
| Built-in GNSS | GPS GLONASS BeiDou (Compass) Galileo QZSS |
| INTERFACES | |
|---|---|
| UART (TTL, 5V) | x1 |
| CAN 2.0 | x1 |
| SPI (TTL, 3.3V) | x1 |
| I2C (TTL, 3.3V) | x1 |
| USB-C | x1 (for power supply/ firmware upgrade) |
| SIM Card Slot | x1 Nano SIM |
| On Board Local Storage Card Slot | x1 microSD (max 32GB, not included) |
| SOFTWARE & GUI | |
|---|---|
| Data Protocol | Compact JSON (refer to integration guide) |
| Graphic User Interface (GUI) | Log in to Area 65 cloud via web browser |
| GUI Features (coming soon) | User configurable data label, graph plotting, log/save data file, print screen |
| Custom GUI | Yes, contact Area 65 |
| Local Deployable Server | Yes, contact Area 65 |
Technical specification is accurate at the time of writing and subject to changes and modifications

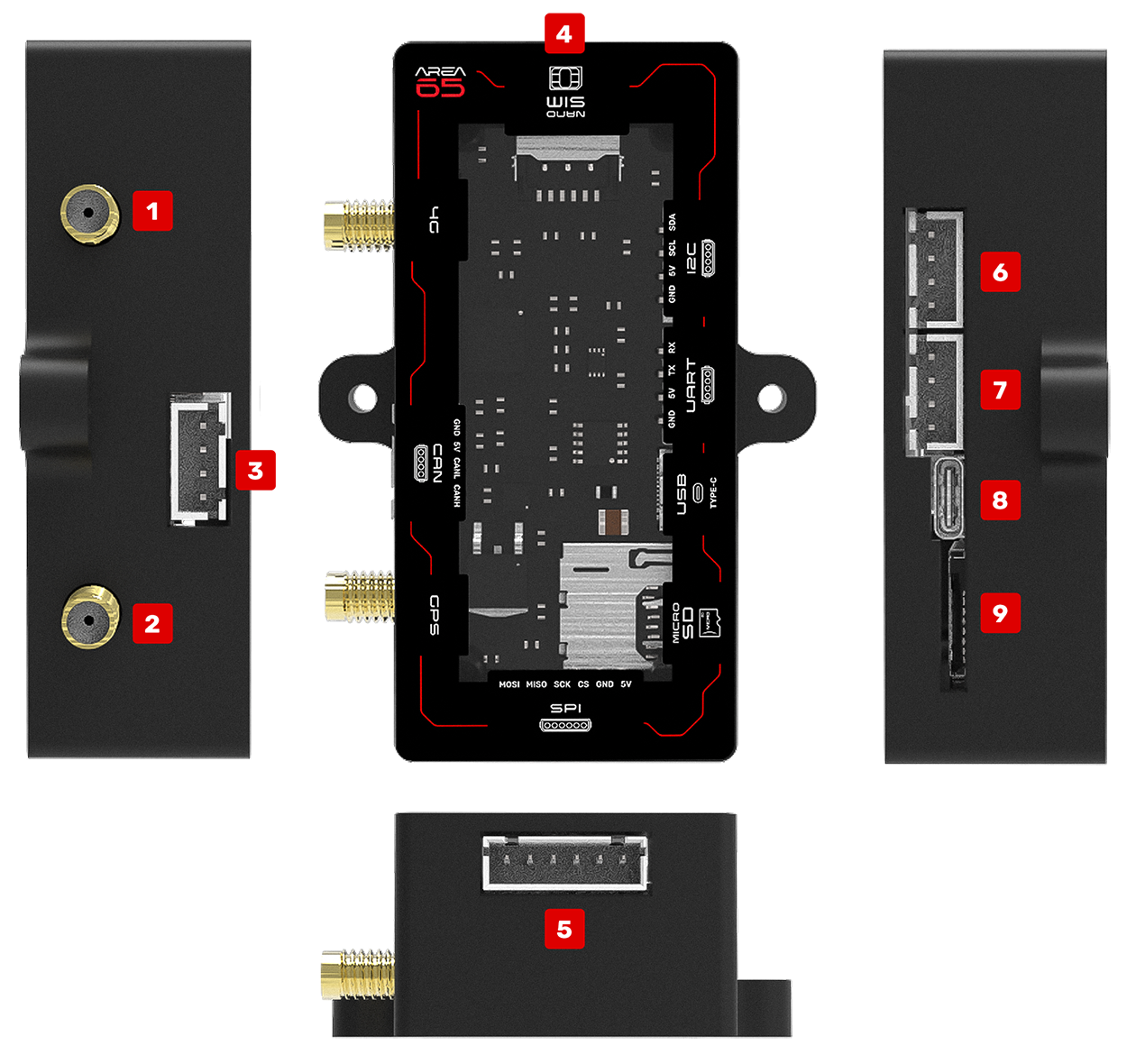

HARDWARE INTERFACES
FLEXIBLE
The module supports four communication interfaces — CAN, UART, I2C, and SPI, with the flexibility to operate them simultaneously. Power can be supplied through any of these interfaces or through the USB-C port.
MECHANICAL DIMENSIONS
COMPACT
Area 65 4G Telemetry weighs only 45g. Mounting holes are provided to allow secure installation near your device.
WHAT’S IN THE BOX
GET STARTED IN MINUTES
All required cables and connectors are provided. Simply install a Nano SIM card and an optional microSD card.
| COMPONENT | QUANTITY |
|---|---|
| 4G Telemetry Module | 1 |
| 4G + GPS 2-in-1 antenna | 1 |
| 4-Pin XH 2.5 with wires (for CAN, UART, I2C) | 3 |
| 6-Pin XH 2.5 with wires (for SPI) | 1 |
| USB-C cable (for power supply/ firmware update) | 1 |
